Oil Packaging Machine

Get Latest Price

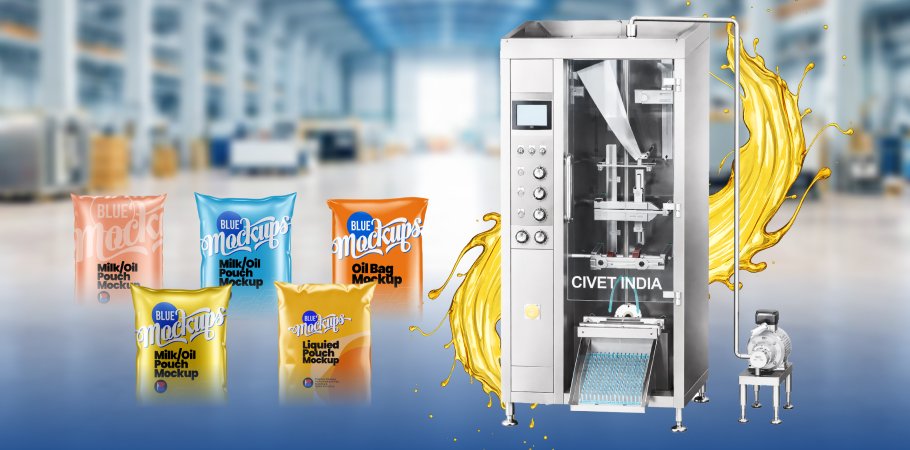

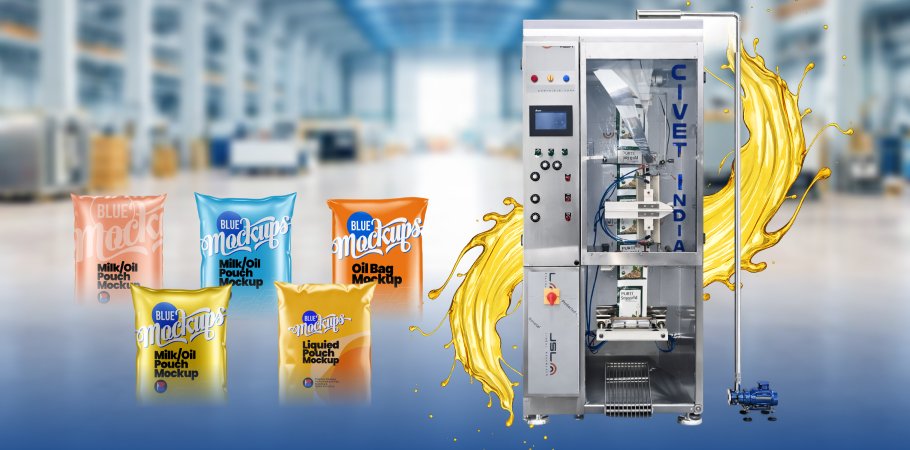

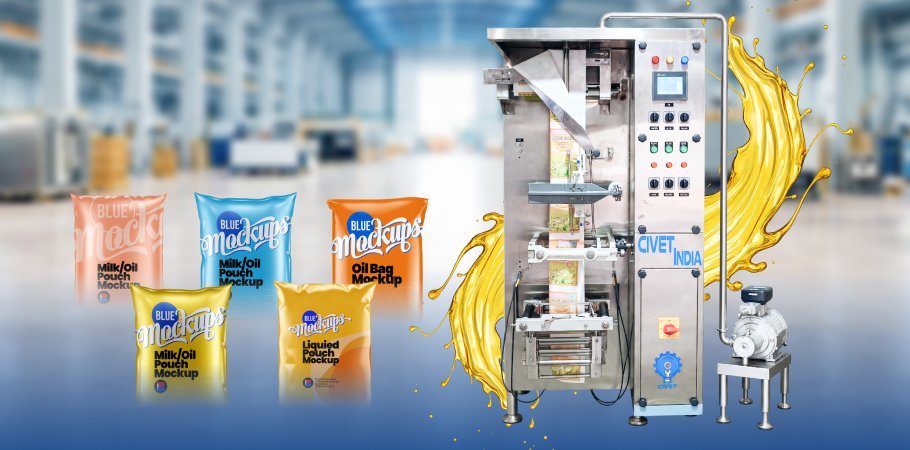

Liquid Packaging Technology — Oil / Viscous Liquid. Automatic Form, Fill & Seal Machine available in three models: C-LAX15, C-LAX-20 and C-LAX-40.

Technical Specifications of Automatic Form, Fill & Seal Machines

Select a model to view its detailed specifications. All three models share the same pouch technology, differing mainly in speed, drive & filling option.

  • ProductOil, Vanaspati & any other Viscous Liquid
  • Filling range200ml to 1000ml
  • Packaging materialCo Extruded 5 layer Based 85 Micron to 110 Micron
  • Film reel core DiaCore dia 75 mm and reel dia 300mm
  • Pouch format3 side seal for increase panel area
  • Input Supply415 V AC, 50 Hz, 3 Phase, 4 Wire
  • Connected Load3.5 kW
  • Cooling Water Flow Rate200 litres/hr
  • Temperature Range6 degrees to 8 degrees C maintained
  • Minimum Pressure0.5 bar
  • Speed12 to 15
  • Main DriveAC Motor
  • Filling OptionVolumetric Filler

Features

  • Optimised for 12–15 pouches/min with economical AC Motor drive.
  • Fully Automatic with user Friendly Controls
  • Auto Indicator for End of Film Roll
  • Easy Access to Control points
  • Easy to Maintain

Machine Features

  • Volumetric filling head — simple, low-maintenance dosing.
  • Single head & double jaw operation.
  • Mechanical cam with linkage mechanism for different functions.
  • MS structure with SS contact parts & covers.
  • Intermediate dosing system.
  • Enclose SS cabinet.
  • Full mechanical machine no required any air compressor.
  • Less floor space requirement for machine.

Accessories

For C-LAX15: These accessories are designed to enhance the performance and functionality of the machine:

Voltage Stabilizer
Take off Conveyor
Coding Unit
Water Cooler
Volumetric Filler Kit
